Introduction

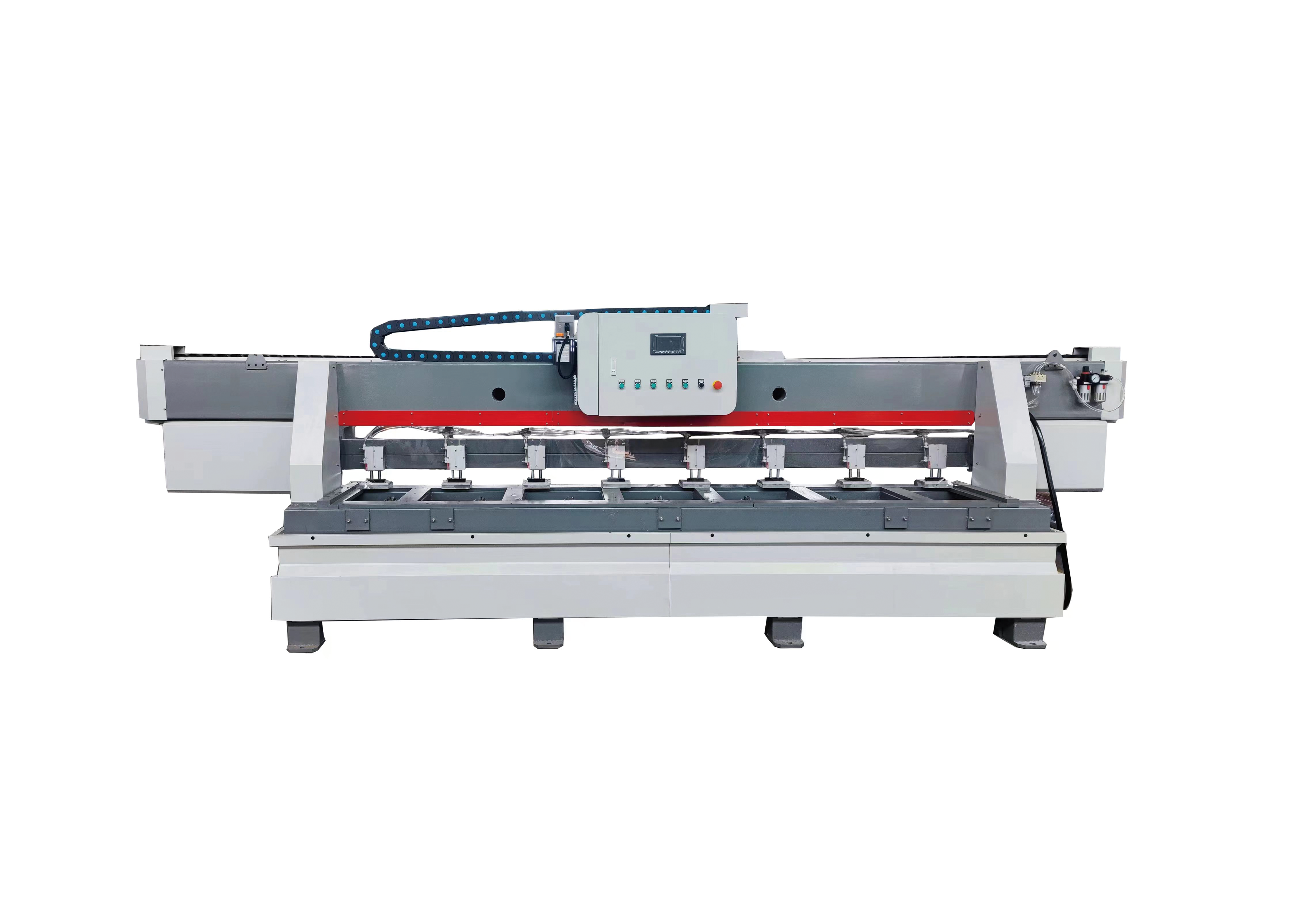

CNC rock plate 45 degree chamfering machine is a kind of CNC equipment specially used for machining the edge of rock plate, especially suitable for 45 degree chamfering of rock plate. This device is very common in the field of modern architectural decoration, especially in high-end kitchen countertops, wall decoration and floor laying, for fine cutting and chamfering treatment to ensure that the edges of the rock slab are neat and seamless when joined.
Functional Characteristic
★This model is used for rock plate, marble, artificial stone, granite, and other building: construction plate for 45 ° chamfer cutting, grinding and polishing, grooving; is the home furnishing market as well as the deep processing customer's preferred equipment!
★Structural features: cantilever hanging structure, waterproof performance, convenient installation.
★Easy to operate: touch interface, intuitive operation, user-friendly operation interface is easy to learn, support for fixed-length running processing.
★High configuration: the main control electrical components using Schneider Electric, stable performance, long life; cutting and grinding and polishing of the main motor using the Shanghai Dedong brand, the quality is more stable, after-sales service is guaranteed,
★High precision: all transmissions are used in high-precision linear guides, running and working smoothly, high precision.
Various parameters
| Product name | CNC rock slab 45°chamfering machine YK3300-3HD |
| Maximum chamfering length/mm | ≤3300 |
| Chamfering motor power/Kw | 7.5 |
| Chamfering angle | 45 |
| Polishing motor power/Kw | 3 |
| Running speed m/mir | 0-10 |
| Total power K W | 16 |
| Chamfering saw blade diameter/mm | 300-350 |
| Gross weight of the whole machine kg | 2900 |
| Polishing wheel specification/mm | 30/120 |
| Dimension of external shape/mm | 5600X1500X1900 |
| Slotting saw blade diameter/mm | 250 |
