Introduction
Flat circular dual purpose engraving machine is a kind of CNC engraving equipment which integrates the functions of plane engraving and cylinder engraving. It is able to complete two different types of engraving tasks on a single machine, mainly used in woodworking, advertising production, crafts manufacturing and other industries.
Functional Characteristic
★ This equipment is specially designed for stone engraving machine industry;Can be used for plane engraving,three-dimensional engraving two processing functions,plane processing is mainly used for granite,marble,quartz stone,copper plate,aluminum plate and other plane engraving and hollow cutting; Three-dimensional processing is mainly used in Roman Columns,columns,drums,round railings,dragon columns,figures and other three-dimensional crafts carving processing;It is the first choice for stone special-shaped carving processing plants;
★ Main accessories:Dimension 4 axis round carving system;Shenzhen Lei sai brand high torque servo;The rotating shaft structure is independent thimble structure,brand RV high precision reducer;Fast processing speed,high precision,strong stability;
★ The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;
★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer.
Various parameters

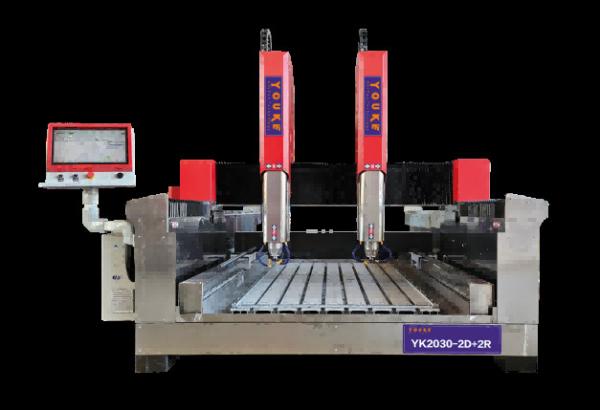

| Product name | Flat circular dual purpose engraving machine YK2030-2D+2R |
| Platform dimensions | 2000x3000mm |
| Workpiece size | 1800×2500 |
| Feed height | ≤400mm/700mm |
| Blank speed | 25m/min |
| Processing speed | 1-25m/min |
| Spindle power(Transducer) | 7.5KW water-cooled spindle |
| Motor | 1.5kw AC digital servo motor |
| Operating Voltage | AC380V/50Hz |
| File format | G-code/HPGL |
| Control System | WEIHONG Nc60A |
| Machine dimension | 3200x3900x2500mm |
| Weight | 2800kg |
